Being a rotary die cutting equipment supplier, we know better the importance of quality rotary dies than everyone elseThrough fully-owned subsidiary companies, HOAc0 has the ful capabilities to design and build all types of high preci.sion rotary solid dies to better serve our customers with stringent quality control and fast turnaround time.
Whenever vou engage HOACO for a rotary die cutting solution, you are auaranteed for the best result and precision aswe own the complete production cycle from machine to process to rotary dies.
ROTARY TOOLING

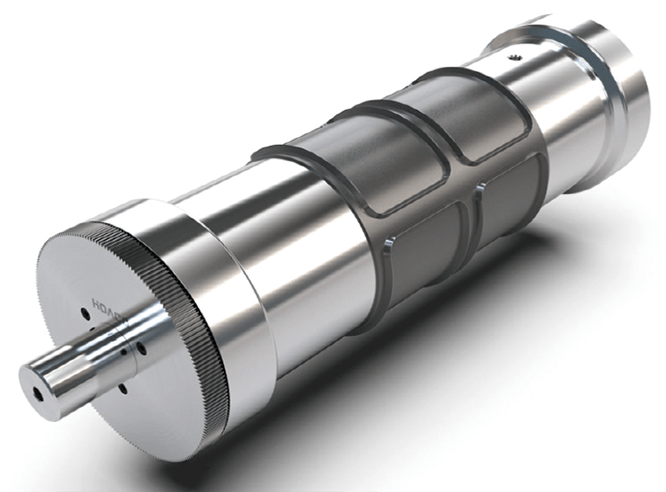

Solid Die
Overview:
The engraving circular knife, made of high-quality materials and pro.cessed by a computer-controlled four-axis high-precision machine toolis widely used in the die-cutting requirements of electronic adhesiveproducts,self-adhesive materials and container packaging materialsetc.This type of cutting tool is the foundation of other round knives, andall other types of round knives are developed from this basis.
Benefits:
- The cutting tools feature high hardness, high wear resistance, and long service life.
- The precision of the cutting edge can reach 0.02mm
- The minimum gap between the cutting lines can be as small as0.3mm

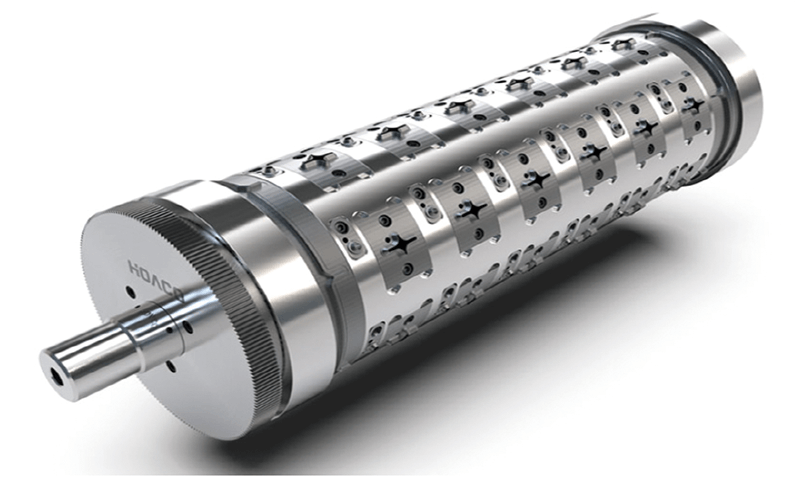

Pin-Eject Die
Overview:
Holes waste is pushed out by retractable pins and carried away by anunderlying tape.No air, no noise,just a clean finish.
Benefits:
- The cutting tools feature high hardness, high wear resistance, and long service life.
- The precision of the cutting edge can reach 0.02mm
- The minimum gap between the cutting lines can be as small as 0.3mm

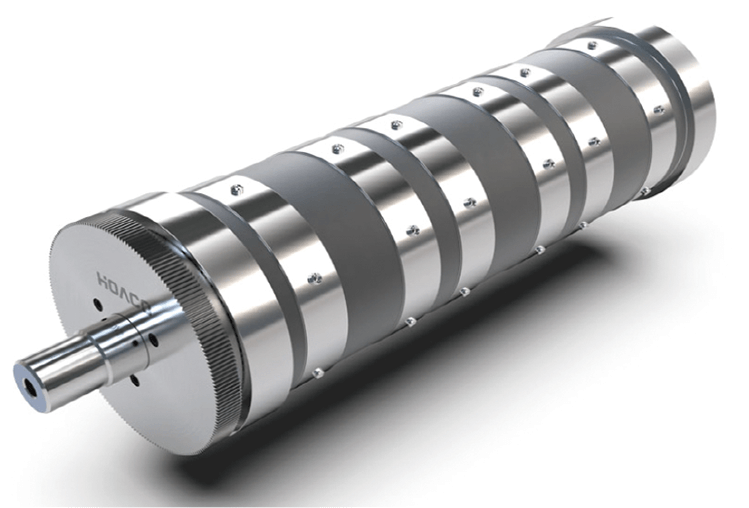

Vacuum Die
Overview:
Made hollow inside,vacuum dies have through holes on the body to allow waste extracted out by vacuum
Benefits:
- The cutting tools feature high hardness, high wear resistance, and long service life.
- The precision of the cutting edge can reach 0.02mm
- The minimum gap between the cutting lines can be as small as 0.3mm

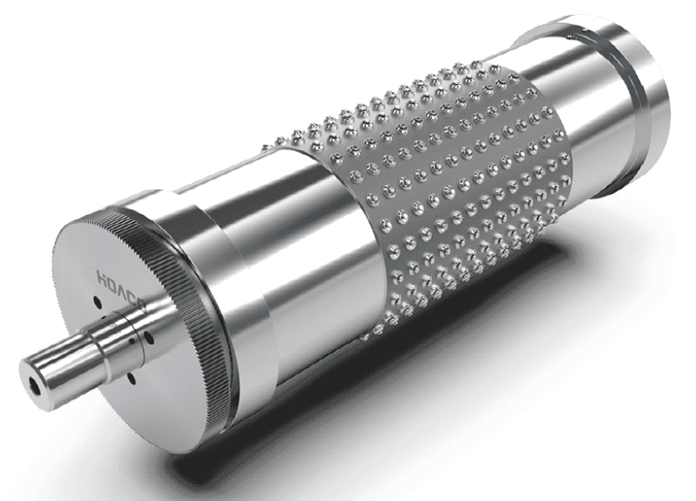

Air-Eject Die
Overview:
An air-eject rotary die incorporates compressed air to assist in the ejec-tion of holes waste
Benefits:
- The cutting tools feature high hardness, high wear resistance, and long service life.
- The precision of the cutting edge can reach 0.02mm
- The minimum gap between the cutting lines can be as small as 0.3mm

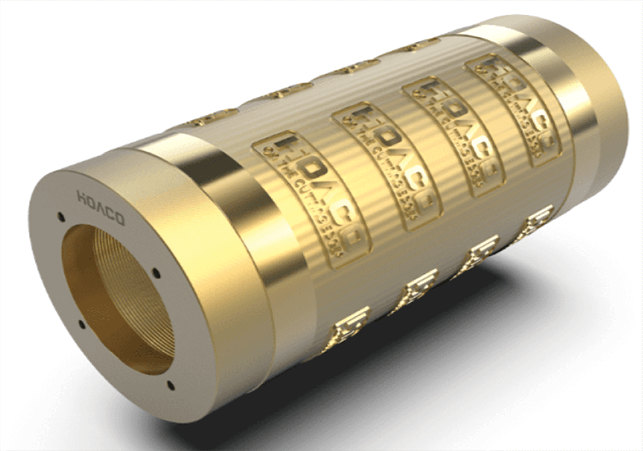

Hot stamping Die
Overview:
Utilizing cutting-edge image and text processing systems our hotstamping cylinders are designed to deliver precise contours and exactreproductions
Benefits:
- Perfect for intricate motifs
- Precision milled for maximum depth accuracy
- Repairable in case of damage or wear

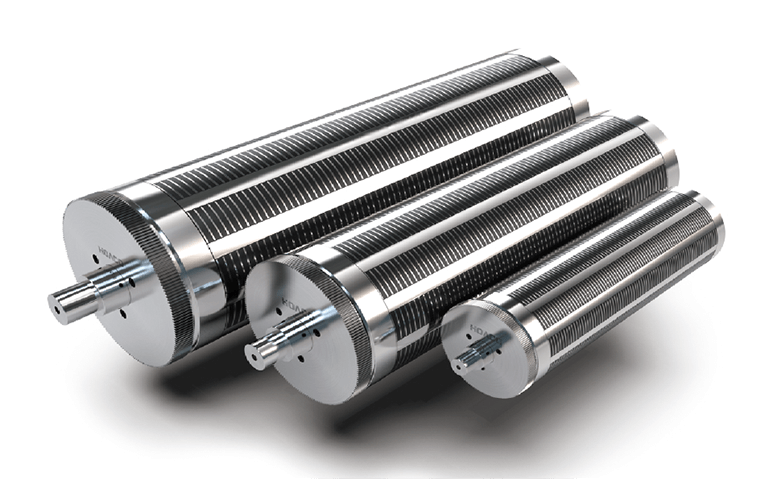

Magnetic cylinder
Overview:
The material choice maintains the magnetic force while providingstrong and consistent adhesion to the flexible die during usage
Benefits:
- Multi-part construction for ease of repair and extended use
- Guaranteed long service life
- Maximum concentricity for accurate die cutting
- Optional hardened and ground gears available
Technical Specifications
