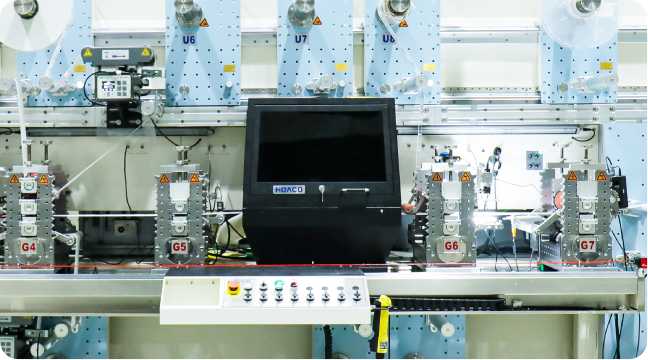

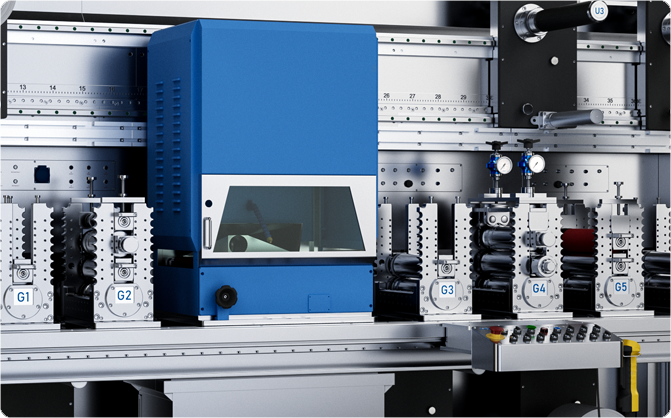

RDC + LASER CUTTING MACHINE
Hybrid Capabilities Light-Years Ahead
PRODUCT
OVERVIEW
Laser processing is a non-contact, clean method that produces highly precise, repeatable cuts with superior edge quality. When integrated with RDC machines, this hybrid solution combines the flexibility of laser processing with the high efficiency of rotary die cutting, offering an ideal solution for demanding manufacturing requirements.
| Laser Generator | Scanner | Mirror Size (mm) | Wavelength |
|---|---|---|---|
| 150W / 250W / 350W / 450W / 650W | 3D Pre-focusing | 30 / 50 | 10.2 um or 9.3 um |
| Spot Size | Working Field | Generator Cooling | Scanner Cooling |
|---|---|---|---|
| 0.1 - 0.2mm | Up to 400 x 400 mm | Water ( 23±1°C ) | Water ( 23±1°C ) |
KEY ADVANTAGES
- Operates in continuous (Cut-on-the-Fly) or step mode
- Vision registration for automatic cutting correction
- Flexibility in handling complex geometries
- Eliminate tooling costs and minimize changeover downtime
- Easy fume exhaust and waste removal with integrated vacuum systems
- Pre-focusing scanner for wider cutting width
- Low to high power laser generator available
TYPICAL APPLICATIONS
CUSTOMER BENEFITS
- Improve Production Efficiency And Reduce Labor Costs
- High Precision Ensures Product Quality And Yield
- Flexible To Adapt To Different Materials And Product Designs
- Comprehensive Pre-Sale, In-Sale, And After-Sale Support
Medical dressings (foam, hydrocolloid, conductive patches)
Medical tapes and patches
Electronic films and industrial materials
Customized products and small-batch production
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (static elimination, anti-stick, corona treatment)
PROJECT CONSULTING
PROTOTYPING
ON SITE TRAINING
24/7 SUPPORT
