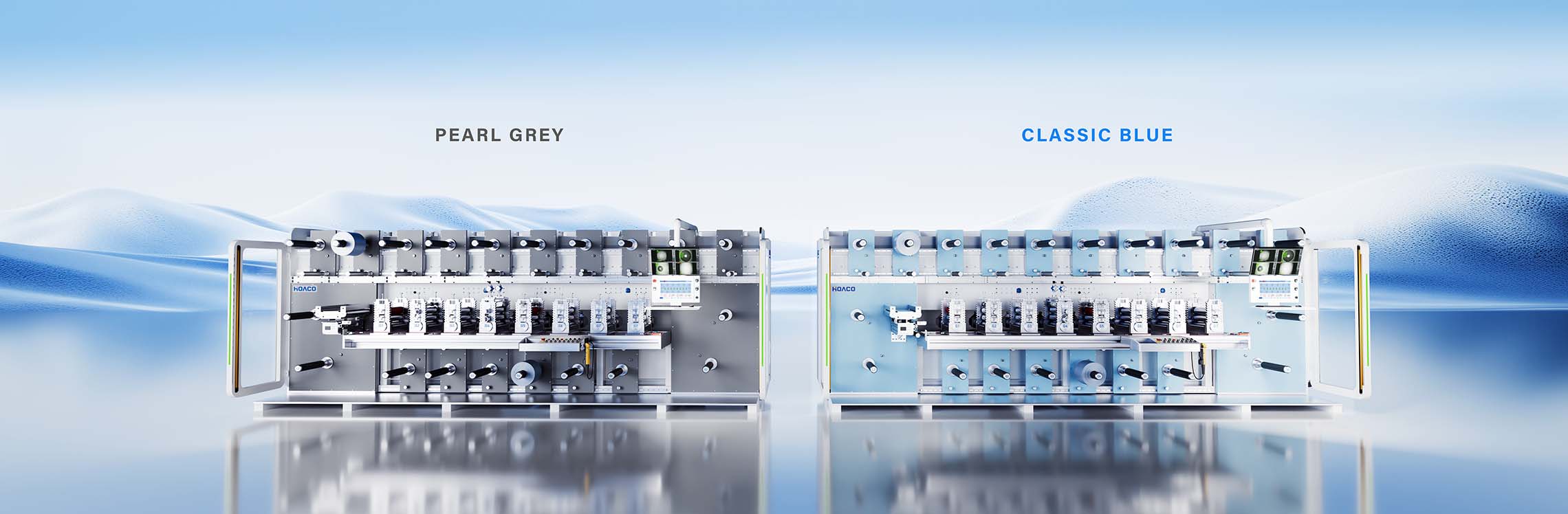

ROTARY DIE CUTTING MACHINE
Cutting-Edge Rotary Die Cutting System for High-Precision Converting

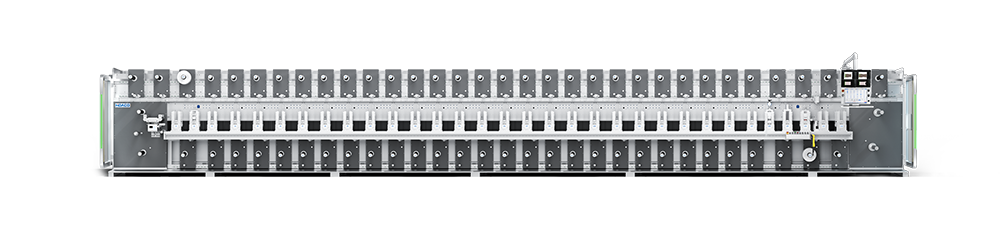

32 Stations

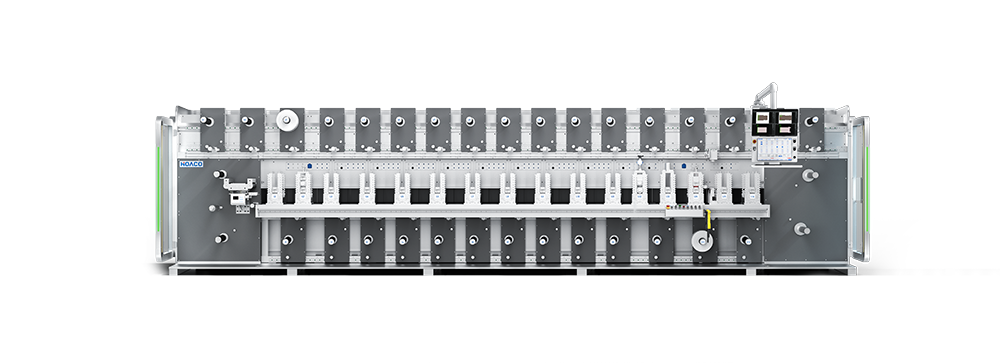

16 Stations

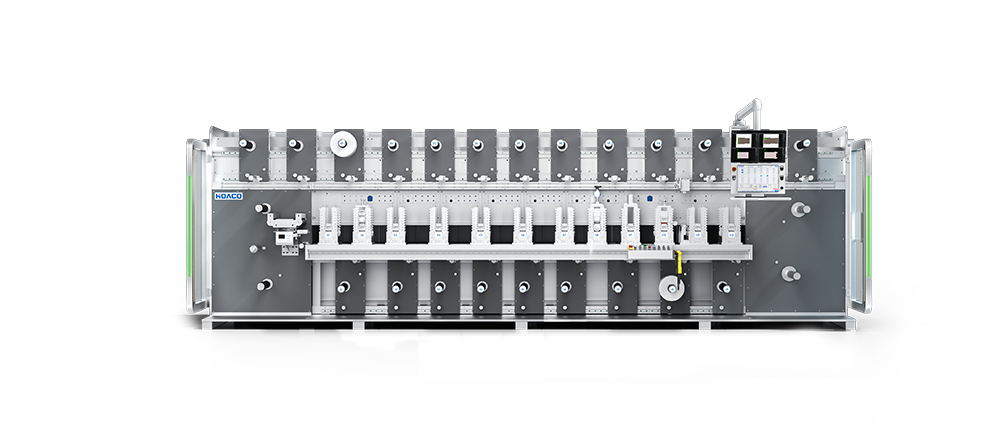

12 Stations

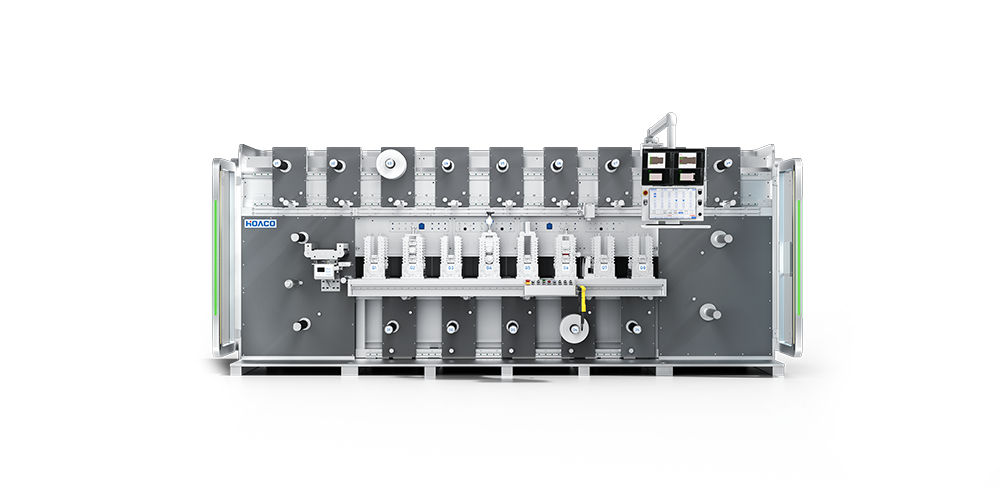

8 Stations

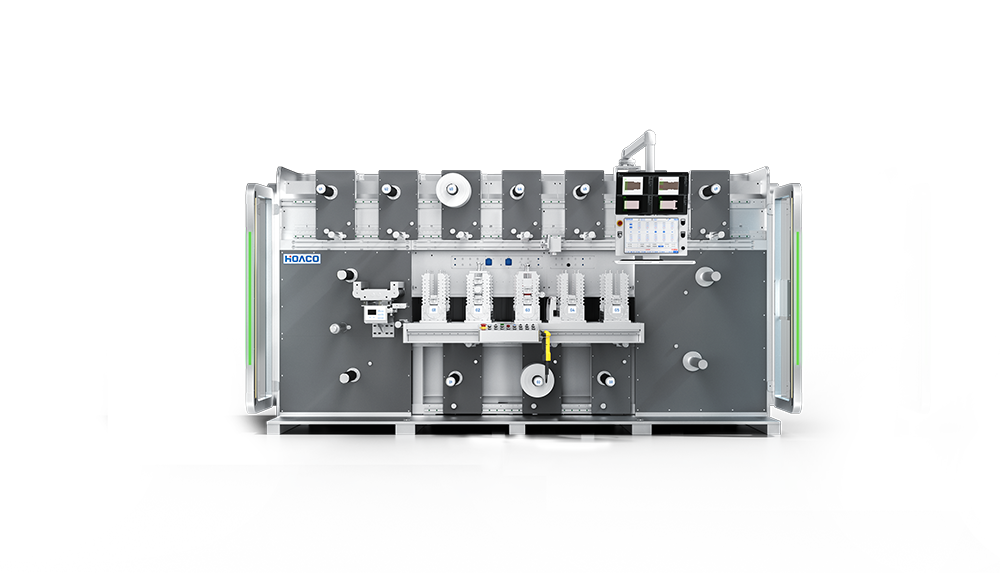

5 Stations
KEY ADVANTAGES
High‑Speed Continuous Operation
The rotary design enables continuous cutting and processing at speeds significantly higher than flatbed die cutting, ideal for high‑volume production.
Integrated Multi‑Function Stations
Multi‑station configuration allows inline combining of die cutting, creasing, perforating, and lamination within one machine line.
Precision & Repeatability
Closed‑loop tension control and precision registration deliver consistent repeatability and dimensional accuracy.
Reduced Material Waste
Precision die cutting and island placement minimize material waste, maximizing yield and reducing cost per part.
TYPICAL APPLICATIONS
MEDICAL
Wound dressing, IV dressing, ECG/Tab/TENS Electrodes, ESU grounding pad
ELECTRONICS
Screen protector, Frame adhesive, Battery strips, Graphite sheets
AUTOMOTIVE
Tire repair patch, VHB, FDC
LABEL & RFID
Label/Tag/Ticket/Boarding pass, Baggage tag
CLEAN ENERGY
Fuel cell, MEA, CCM, Lithium-ion batteries protectors
CORE TECHNOLOGY HIGHLIGHTS
Servo‑Driven Control
Servo driven motion and tension control ensure consistent web handling and quality.
Closed Loop Registration
Closed‑loop registration for accurate positioning regardless of incoming mark variation.
Quick Change Tooling
Quick and easy tooling change minimizes downtime for high‑efficiency production.
Optional Vision System
Optional vision inspection system enables automated alignment and real‑time quality check.
Laser Die Cutting Integration
Optional laser cutting modules for ultra‑fine cut and kiss‑cut applications.
CAPAILITIES
Rotary Die Cutting
Folding
Perforation
Lamination
Registration
Marking
Sheeting
Slitting
Flexo/Screen Printing
Island Placement
From 3 stations to 48 stations, with web widths ranging from 250mm to 850mm, we have proven models to meet your challenges.

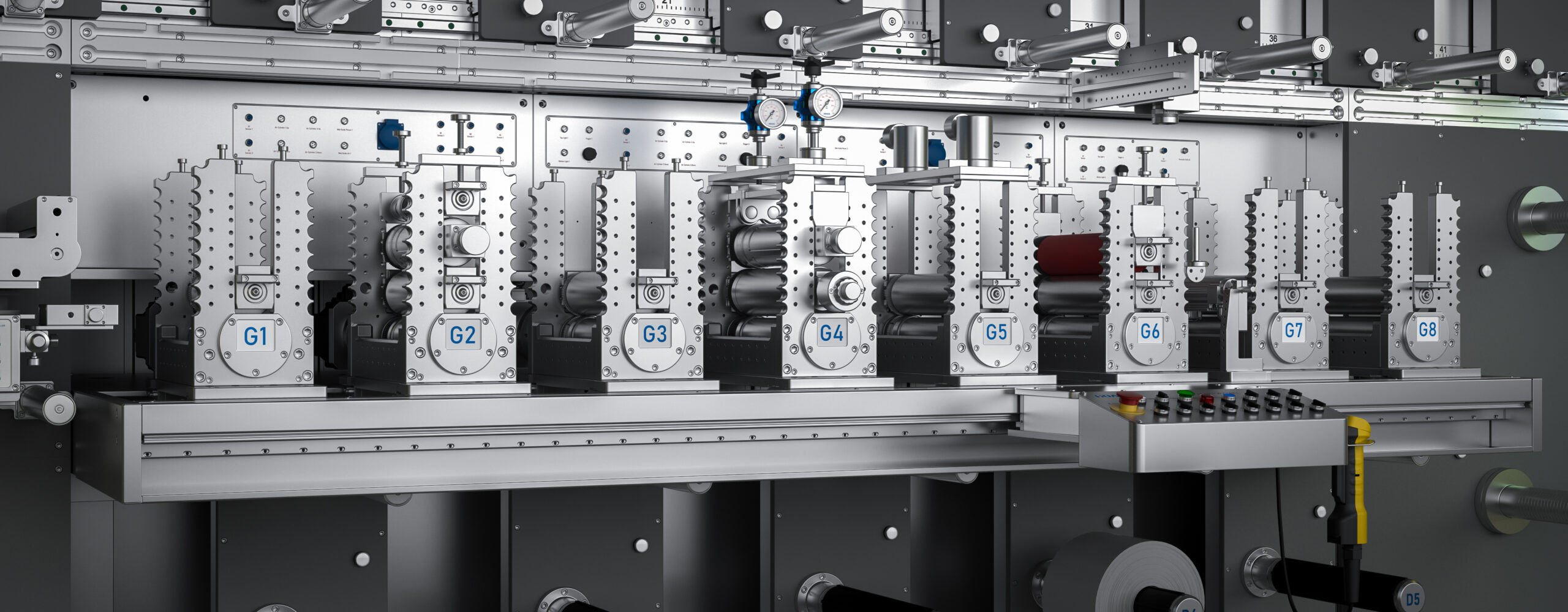

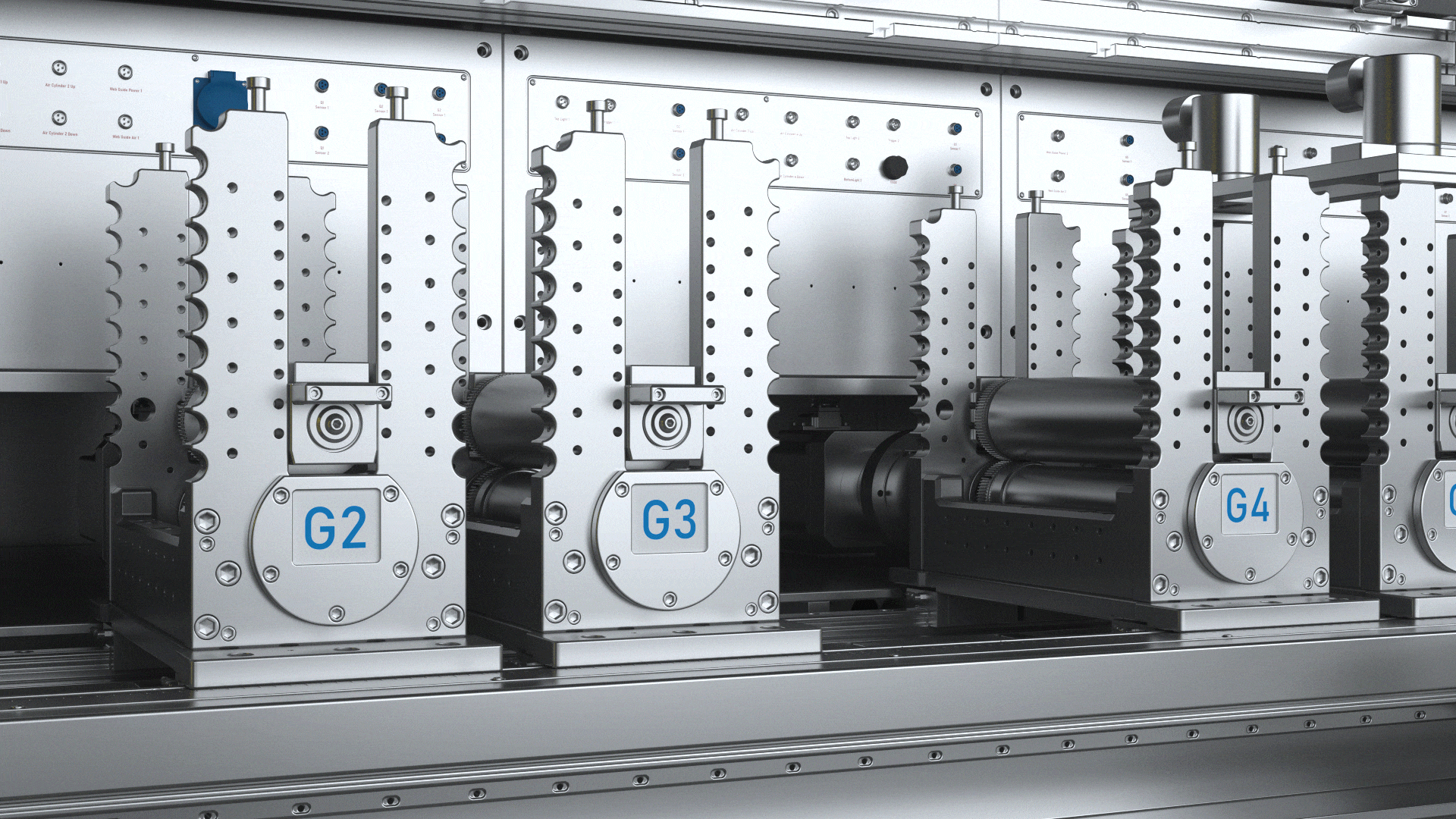

Movable Station
Available in 3 to 48 movable stations, our machines enable ultimate flexibility in process design and material placement.

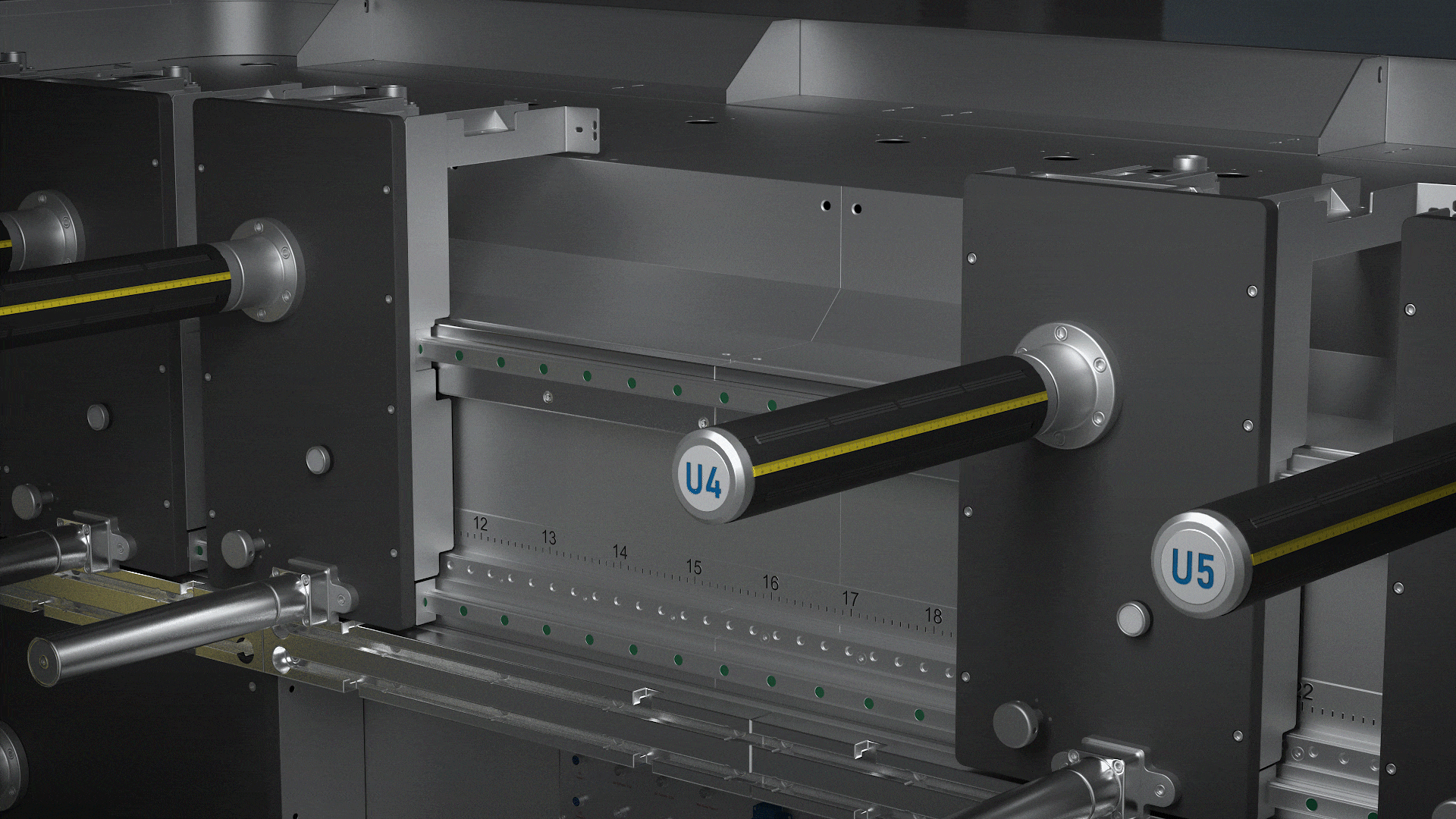

Movable Shaft
Movable shafts enable extreme flexibility in material placement, automatic tension control and quick changeover.
PRODUCT
OVERVIEW
Our Rotary Die Cutting Machine is engineered for continuous, high‑speed production, delivering precise converting performance across flexible materials such as films, tapes, foams, adhesives, and laminates.
| Model (W250mm) | 3-STNS | 5-STNS | 7-STNS | 8-STNS | 10-STNS | 13-STNS | 16-STNS | 20-STNS | 32-STNS | 36-STNS | 48-STNS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Shafts | 5 | 10 | 14 | 16 | 20 | 26 | 32 | 40 | 64 | 72 | 96 |
| Weight (tons) | 1.5 | 3 | 3.5 | 4 | 5 | 6.5 | 8 | 10 | 15 | 18 | 24 |
| Rated Power (kW) | 9 | 15 | 21 | 24 | 30 | 39 | 48 | 60 | 96 | 108 | 144 |
| Length (mm) | 2100 | 3000 | 3500 | 4100 | 5200 | 6000 | 7000 | 8200 | 10800 | 12000 | 15000 |
| Width x Height (mm) | W 1700 x H 2500 | ||||||||||
ISLAND
PLACEMENT
Island placement is the process of starting and stopping a secondary web so a die cut part can be placed on a primary web at a larger repeat.
It is primarily used to
- Minimize material waste
- Place a smaller part on a larger part at an exact location
- Insert an RFID/NFC inlay on a label or sandwiched into a booklet label
- Placing a die cut part multiple times at different repeat intervals on a larger part
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (static elimination, anti-stick, corona treatment)
PROJECT CONSULTING
PROTOTYPING
ON SITE TRAINING
24/7 SUPPORT
