PRODUCT OVERVIEW
HOACO RFID converting machine is suitable for multi-layer composite and die-cutting of various labels and tags, supporting special labels such as anti-metal tags, and has high-precision and high-efficiency batch production capabilities. With customized RFID detection machines, it can achieve automatic marking and full inspection of defective products, ensuring the usability of tags.
This machine belongs to one of the core product lines of HOACO. Its RFID converting machine has won the “2021 IoT Star” Most Influential Innovative Product Award. The equipment integrates functions such as online gluing, transfer, lamination, die-cutting, defect detection and labeling, side waste disposal, and automatic material collection for rolls. It supports the processing of various materials such as dry/wet inlay, stickers, clothing tags, water washed labels, airport luggage labels, etc.
In addition, HOACO provides customized services and can configure different work stations and special functional modules according to customer needs to meet diverse production needs.

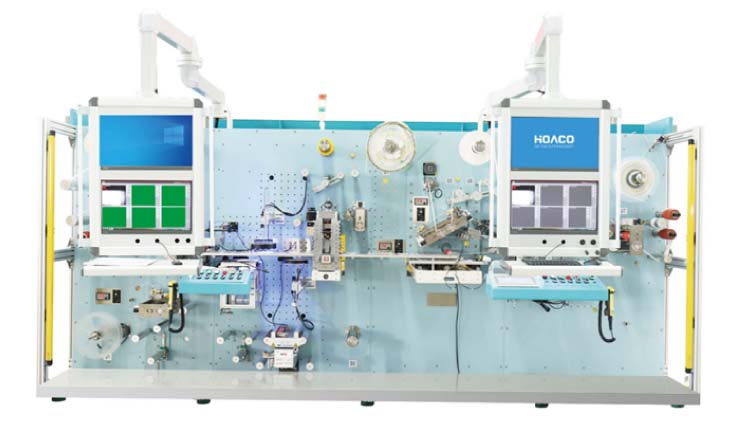

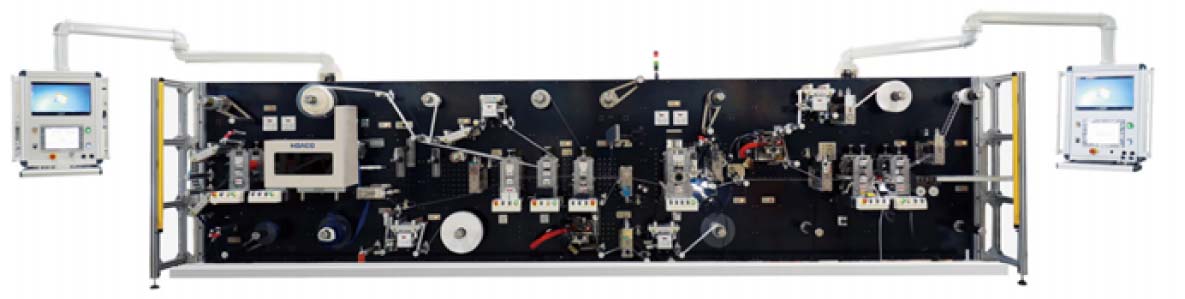

STANDARD RDC MACHINE FOR RFID LABEL CONVERTING
KEY FEATURES
- Standard RDC machine with enhanced features and functionalities for-flexible RFlD lamination and converting
- Suitable for RFlD of complex designs:More than 3 layers; Extra compensation layer with holes; Labels with artworks/Pre-cut inlays.
- High precision up to ±0.3mm
- Inline CCD vision system for visual inspection
- Inline RFlD reader for functional inspection(certified integration with Voyantic Tagsurance 3

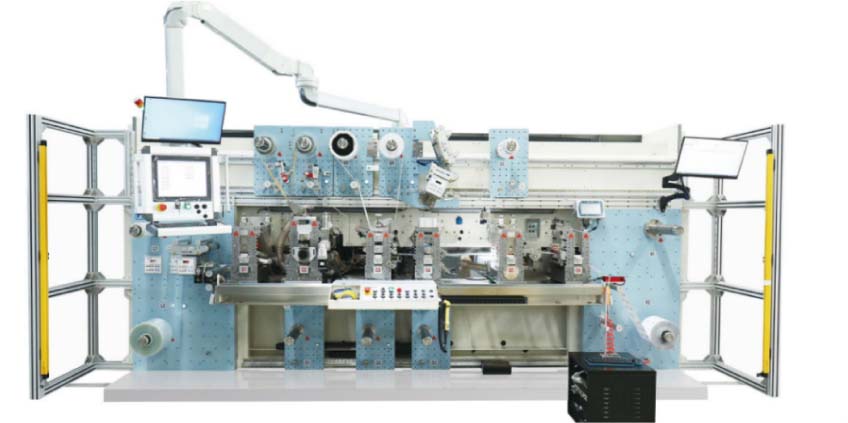

RFID LABEL SPECIFIC CONVERTING MACHINE
KEY FEATURES
- Purpose-built RFlD lamination and converting machine for cost-effective RFlD labels mass production
- Inline hotmelt adhesive coating (optional)
- Multiple lanes of incoming inlay support
- Speed: up to 60m/min
- Vacuum-based inlay cut-n-transfer
- Inline bad inlay reject capability
- Folded antennas handling (optional)
- Lamination/transfer precision:+0.5mm

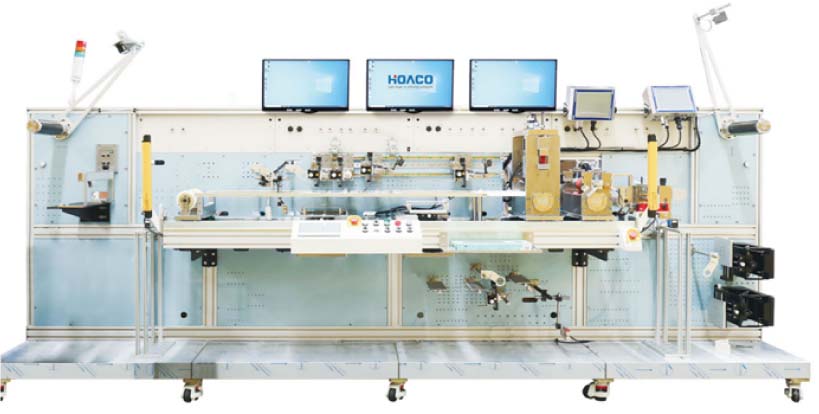

MULTI-FUNCTION RFID LABEL INSPECTION MACHINE
KEY FUNCTION
- Can integrate with third-party testing systems (e.g.,Voyantic)
- CCD Vision System
- Automatic rejection of defective labels
- Patching with good labels
- Re-inspection with CCD Vision and RFID testing system before winding
STANDARD RFID LABEL INSPECTION MACHINE
KEY FEATURES
- 100% RFID functional inspection for quality assurance before shipment
- Support all types of HF/UHF RFID readers and custom RFID testing software
- Automatic machine stop upon detection of defective labels to allow easy manual replacement and re-test
- Cost-effective thermal printing for defective labels
HOACO TECHNOLOGICAL ADVANTAGES
Adopting full servo transmission, multi axis synchronous control, and constant tension system to ensure operational stability and product consistency
INLAY transfer/composite accuracy reaches ± 0.5mm, die-cutting accuracy is ± 0.1mm to ± 0.2mm, and some models have ± 0.1mm automatic alignment accuracy
The production speed can reach 50-70 meters per minute, with a yield rate of up to 99.8%, and the annual output is about 25% higher than traditional systems
Equipped with a CCD tracking system, it can accurately position difficult materials such as graphite sheets
Support rapid material replacement, automatic correction, and dual backup inflation system to ensure production continuity

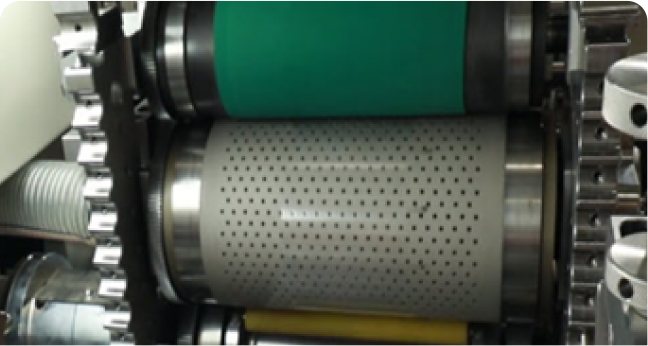

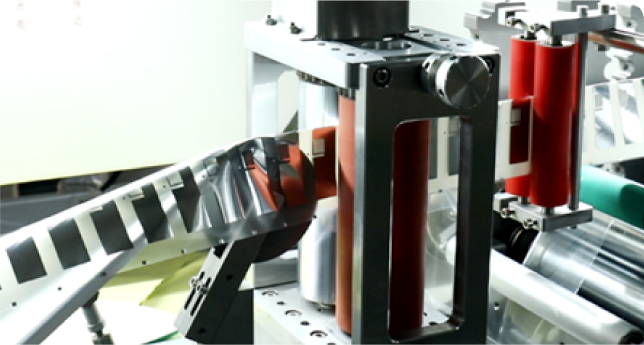

Dry Inlay Vacuum-based Cut-n-Transfer
The Vacuum-based Cut-n-Transfer saves process tapes and offers reasonable precision tolerance up to ±0.5mm.

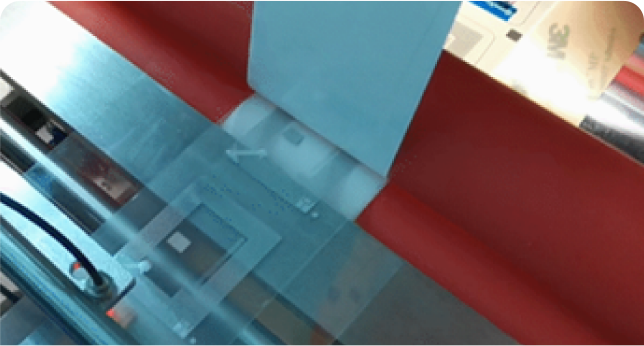

Async Transfer of Wet Inlay + Printed Label Lamination
The Async Transfer requires supporting process tapes but delivers ultimate lamination precision up to ±0.2mm.

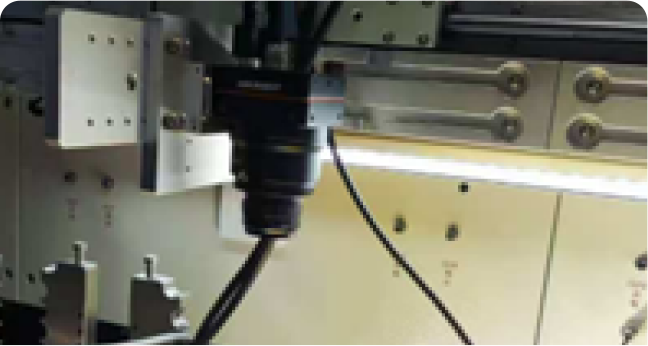

CCD Vision Inspection
Triggered by proximity or mark sensor, high-end CCD cameras captures a high-resolution motion image for visual analysis of dimensional measurement, leftover wastes, stains or misalignment.

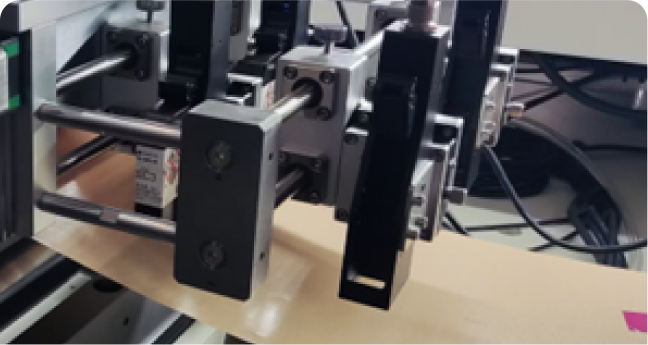

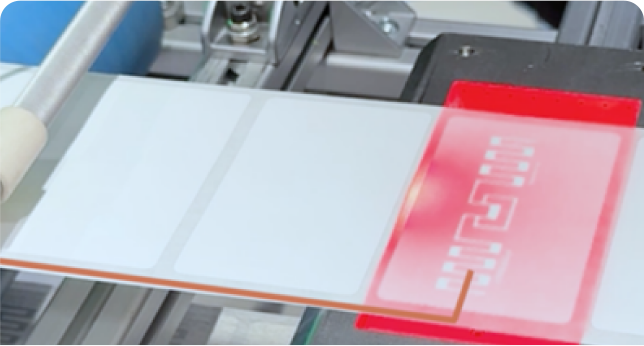

Inline RFID Reader
Connected to a single RFID controller, multiple RFID readers can be positioned optimally to perform inline RFID functional checks for optimal process control and maximize yield.

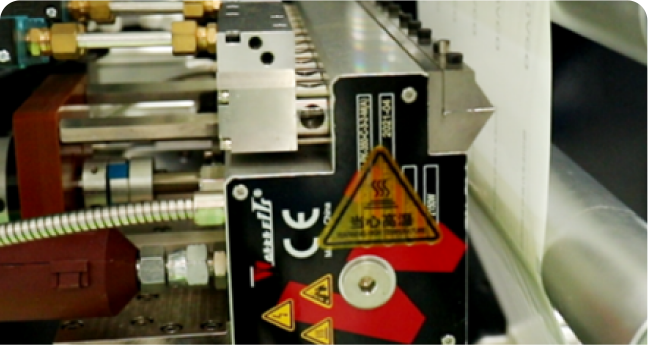

Inline hotmelt adhesive coating
Folded Antenna
Inline Defect Marking
In the event of defective parts detected by either CCD or RFID reader, inkjet printers can be triggered to print black marks on the defects for easy quality control and analysis before shipment.

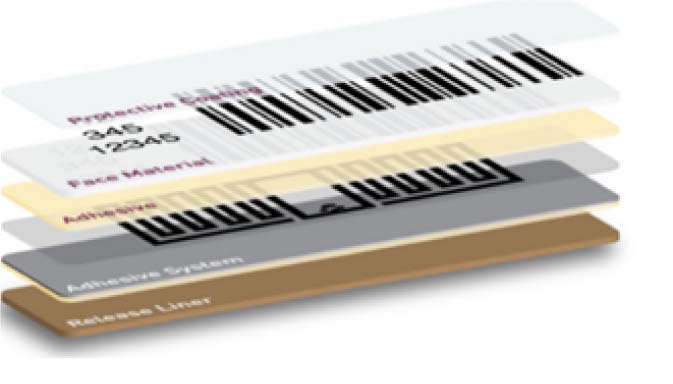

LAYERS OF A TYPICAL
RFID LABEL
1. Release Liner
2. Bottom Adhesive
3. RFID Inlay (Antenna + Chip)
4. Label Material (Blank or Printed)
5. (Optional) Protective Coating
More complicated RFID labels might include compensation layerfor chip protection, absorption layer for pressure buffering,additional liners, conductive or dielectric layers, etc.
HOACO TECHNOLOGICAL ADVANTAGES
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (static elimination, anti-stick, corona treatment)
