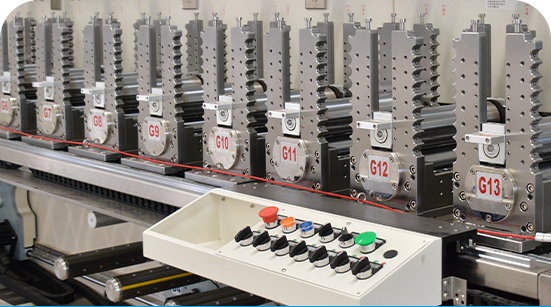

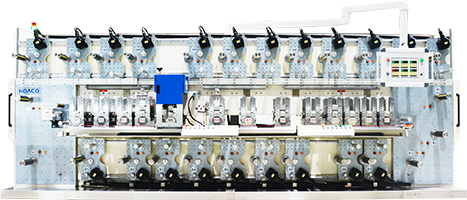

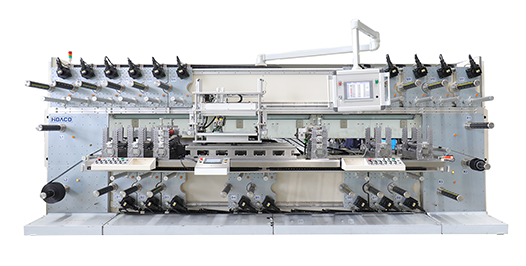

Integrated RDC + Printing Machine
Integrated RDC + Printing Machine
NTEGRATED RDC+ ROTARY
SCREEN PRINTING MACHINE
INTEGRATED RDC +
FLEXOGRAPHIC PRINTING MACHINE

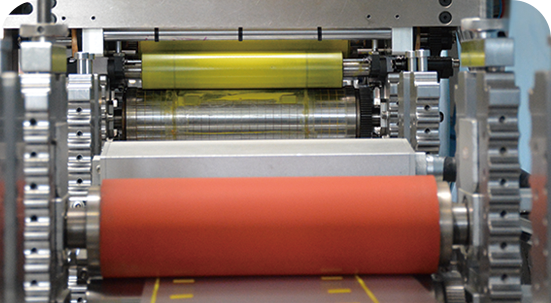

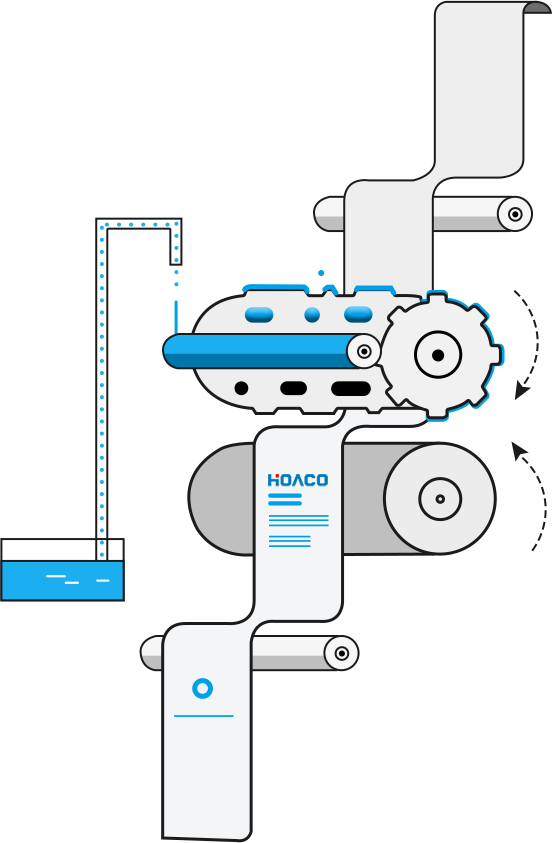

Flexographic is a form of roller printing process which utilizes a flexible relief plate. lt is es-sentially a modern version of letterpress, evolved with high speed rotary functionality ,which can be used for printing on almost any type of substrate, including plastic, metallic films, cellophane, and paper.
By integrating flexographic printing and rotary die cutting into a single machine, it bringsnew possibilities in process design and capabilities, as well as potentially large cost sav-ings in materials by avoiding prepared printing
Key Features
- Continuous flexographic printing that integrates seamlessly with RDC stations
- Space-saving design:the flexo unit can be easily installed in between any two RDC stations
- Use UV ink with LED UV cure
- Lowest cost of ownership and maintenance

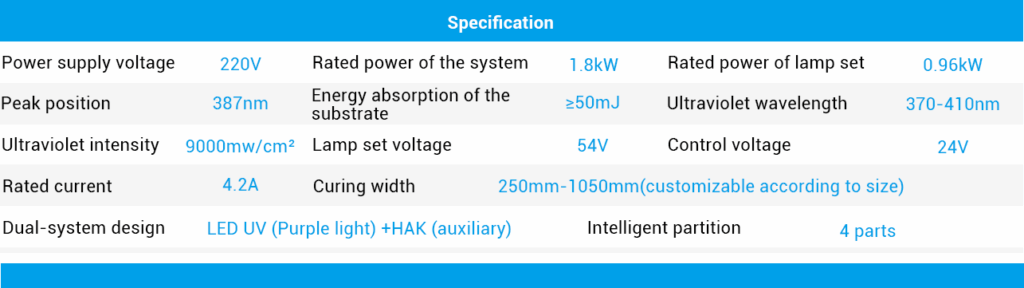

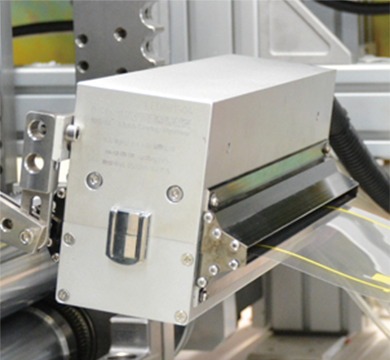

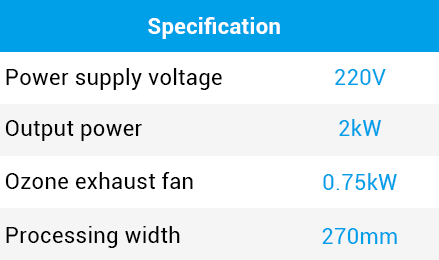

LED UV
Parameters of the halo processor

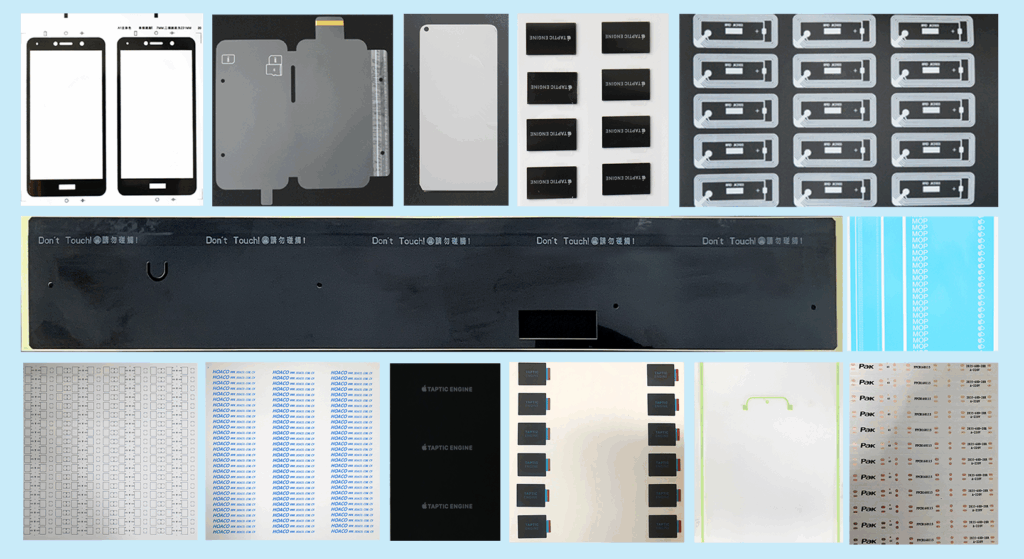

Application
Competitive advantage
Letterpress
1. The printing plate is soft and elastic, with ahigh durability.
2. The ink is applied by an anilox roller, with ashort ink path and controlled ink deliveryReactquickly.
3. The ink has a low viscosity and dries quickly.
4. Short plate-making cycle, fast printing speedand low investment.
5.The ink’s expressiveness is pproximately90%, with rich tones and a wide range of colorsIt has strong color reproduction ability. Thelayout has strong durability. Print run count.lt’svast in volume.
Letterpress

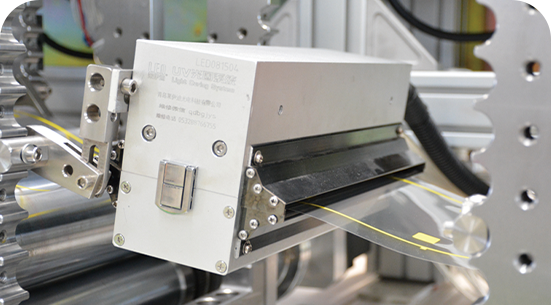

1. LED light is a cold light source and can beused for heat-sensitive materials. Prevent ther-mal damage problems such as deformation anddiscoloration.
2.Mercury-free and ozone-free, Environmentallyfriendly, hygienic and safe.
3. Low energy consumption; lt can effectivelyoutput in an instant, saving over 90% of electricity compared to ordinary UV curing lamps and reducing production costs.
4. The LED curing equipment is compact and itssize can be controlled. There is almost no main-tenance cost and its service life can reach25,000 to 30,000 hours, which is more than 20times that of ordinary UV lamps.
5. lt can be connected with the circular knife ma-chine of the printing machine. lt can automati.cally adjust the light energy according to theprinting speed. The equipment will automaticallyshut down when it stops, reducing energy wasteIt can be manually adjusted and set. There is noneed for separate operation during the produc.tion process, truly meeting the requirements ofequipment automation.
Letterpress
1. Die-cutting has an extremely wide range ofapplications and can die-cut various shapes ofdifferent materials. Especially for multi-layercomposite products, one-time molding with ob.vious effects, high speed and high efficiency.
2. Winding and unwinding function, multi-layermaterial compounding function, waste dischargefunction, color mark tracking and cutting func.tion, etc.
NTEGRATED RDC+FIAT
SCREEN PRINTING MACHINE

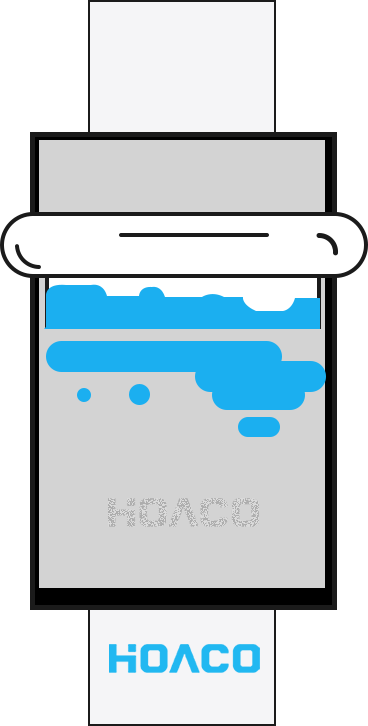

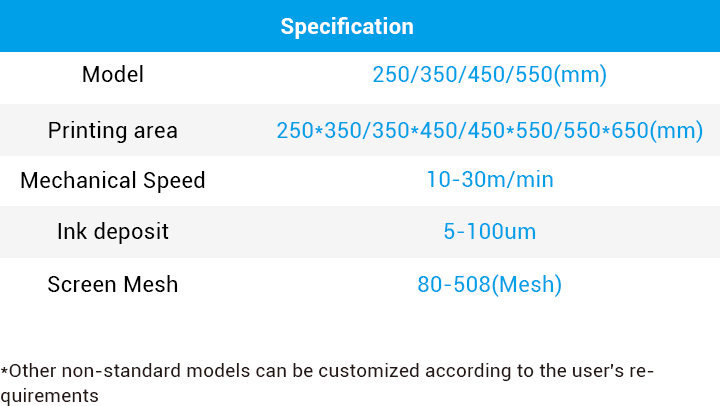

Flat screen printing refers to the use of a screen as the base plate and the production of ascreen printing plate with graphics and text through photosensitive plate-making meth.ods. Screen printing consists of five major elements: the screen printing plate, the squee-gee, the ink, the printing table and the substrate. Printing is carried out based on the fun-damental principle that the mesh holes in the image and text parts of the screen printingplate can pass through the ink, while those in the non-image and text parts cannot. Whenprinting, ink is poured into one end of the screen printing plate. A scraper is used to applya certain pressure to the ink area on the screen printing plate, and at the same time, itmoves uniformly towards the other end of the screen printing plate. During the movement.the ink is squeezed from the mesh holes of the graphic part by the scraper onto the sub-strate.

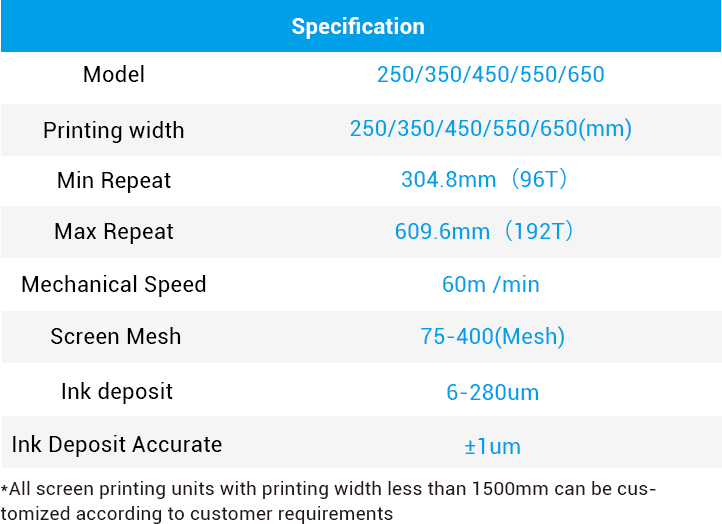

Key Features
- Continuous printing with flat screen moving in sync withthe underlying substrate web
- Medium-speed throughput and precision
- Supports UV ink or Solvent ink
- Low cost of ownership and maintenance
Application
INTEGRATED RDC +
SCREEN PRINTING MACHINE

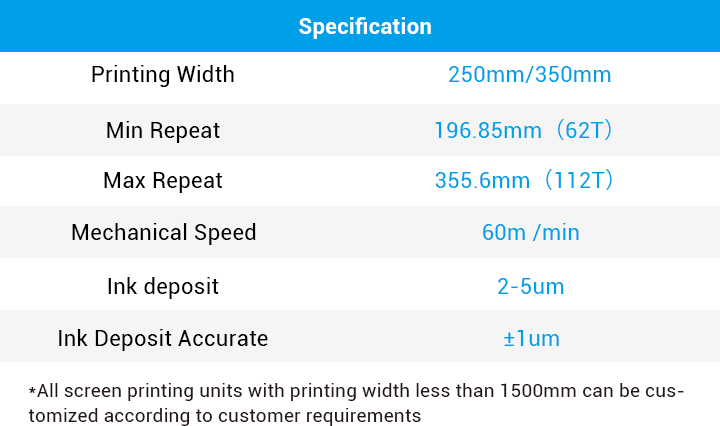

Rotary screen printing machines achieve unique effects that cannot be realized by flexographic, offset or gravure printing processes by obtaining thick ink layers or varnishes in a single print

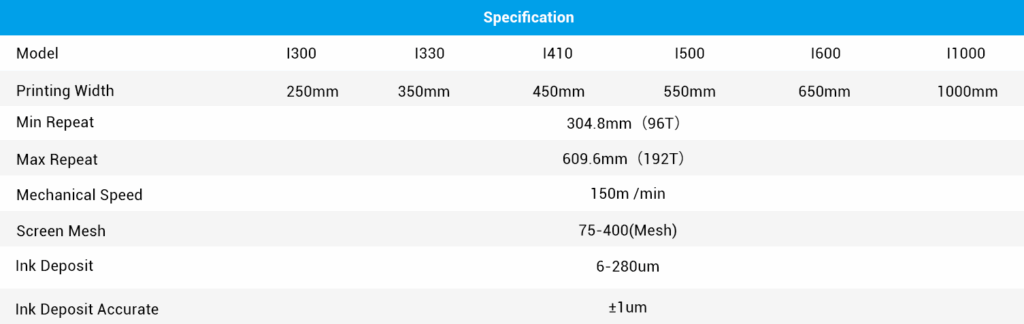

Key Features
- production efficiency Realize the synchronous online operation of printing and die-cutting to enhance
- Printing and die-cutting are carried out simultaneously, which improves the preci-sion of the products
- The printing machine can adapt to various inks, such as UV ink and solvent ink
- The printing effect is exquisite, the ink layer is thick and the ink is not easy to fall off
Letterpress
1. The printing plate is soft and elastic, with ahigh durability.
2. The ink is applied by an anilox roller, with ashort ink path and controlled ink deliveryReactquickly.
3. The ink has a low viscosity and dries quickly.
4. Short plate-making cycle, fast printing speedand low investment.
5.The ink’s expressiveness is pproximately90%, with rich tones and a wide range of colorsIt has strong color reproduction ability. Thelayout has strong durability. Print run count.lt’svast in volume.
PRINTING & COATING MACHINE
Rotary screen printing machines achieve unique effects that cannot be realized by flexographic, offset or gravure printing processes by obtaining thick ink layers or varnishes in a single print

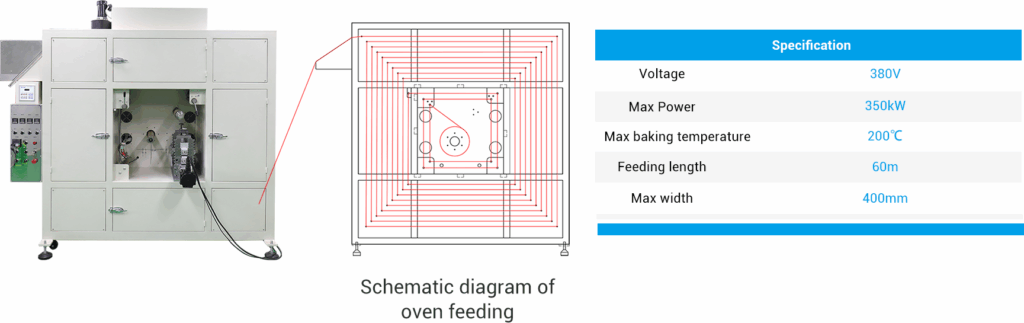

Oven
