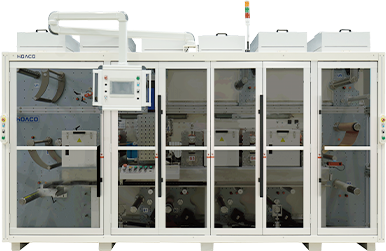

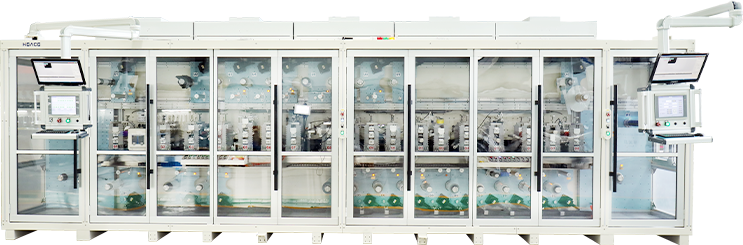

RotoMEA Automation Series
RotoMEA Automation Series
ROTOMEA AUTOMATION SERIES FOR FUEL CELE MEA

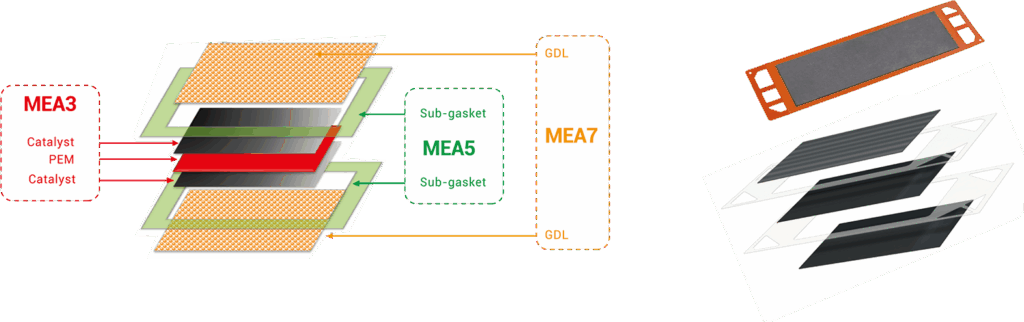

MEA Layers
RotoMEA Advantage

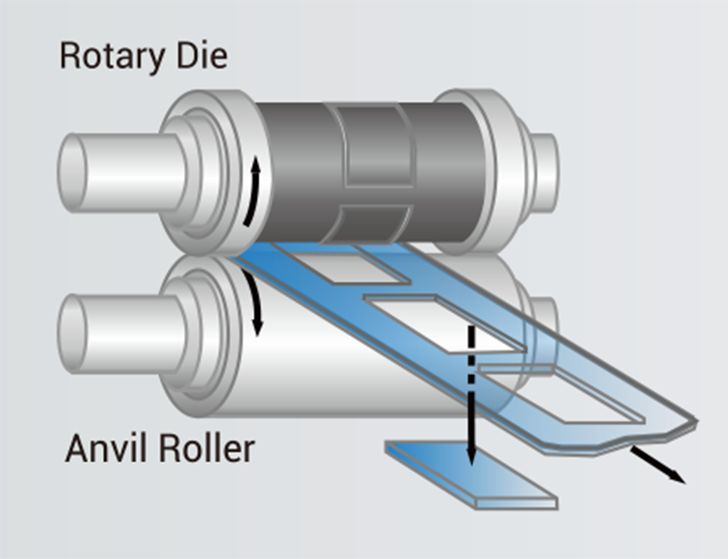

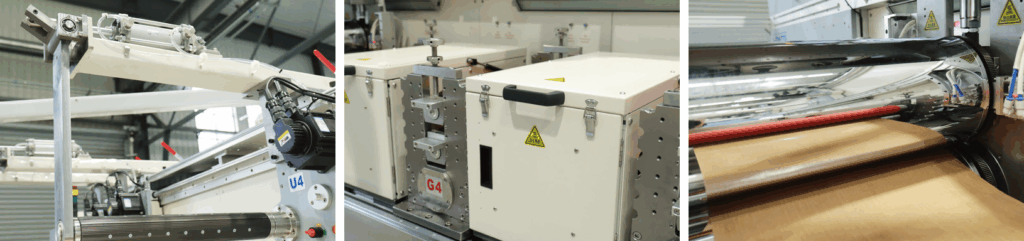

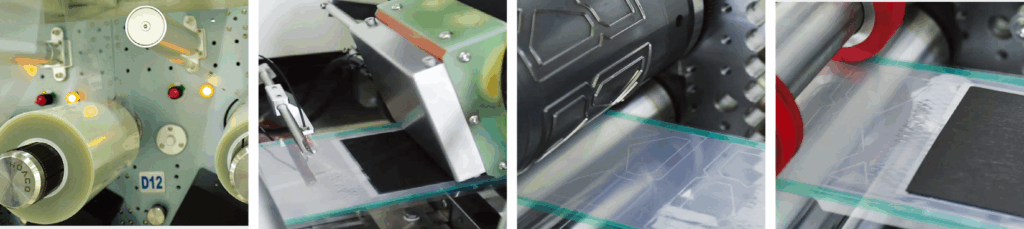

Rotary Die Cutting
- Multiple-layers in a single pass
- High speed continuous cutting
- High precision-Clean and smooth cut edges
- Easy slug removal
- High yield, material savings

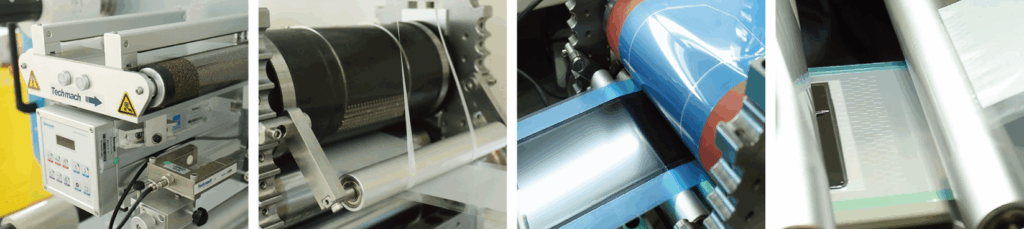

Rolling Lamination
- Naturally Bubble-free
- Wrinkle-free
- Closed-loop tension contro
- Heated lamination available
RotoMEA3(CCM by Decal Transfer
Key Features
- Web width support up to 500mm
- Inline slitting for FG rolls
- Inline hotmelt adhesive coating (optional)

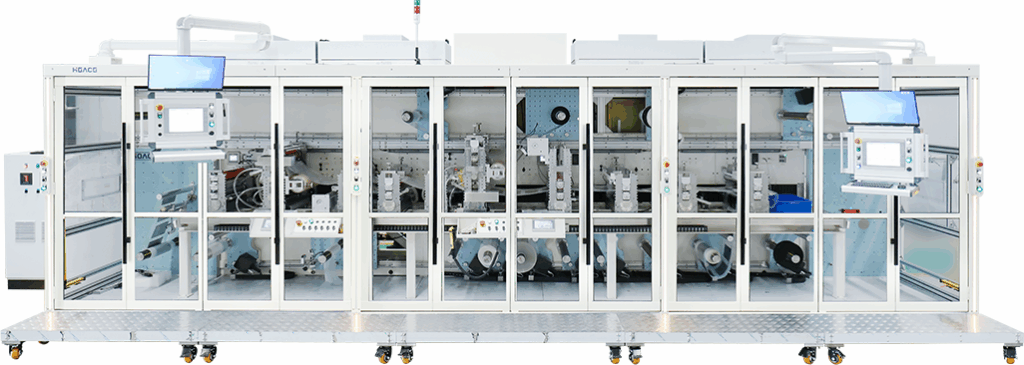

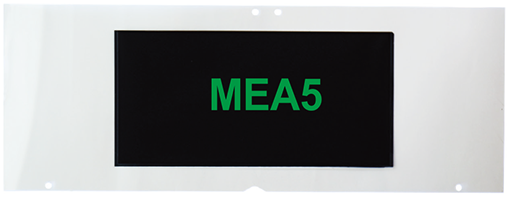

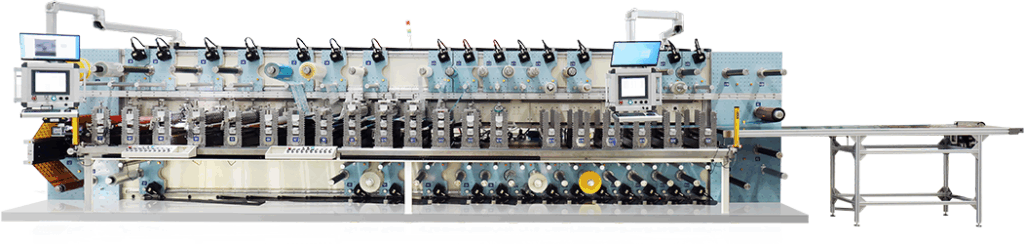

RotoMEA5(Subgasket Attachment)
Cutting and laminating top/bottom sub-gasket layers to MEA3 to produce MEA5, RotoMEA5 18-stations modelcan add double-laver gaskets (top and bottom), while its 26-station counterpart model can attach 4-layers (top2 and bottom 2)-al in a single pass
Key Features
- All incoming materials in rolls
- Superior sealing finish, no wrinkles/bubbles
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)

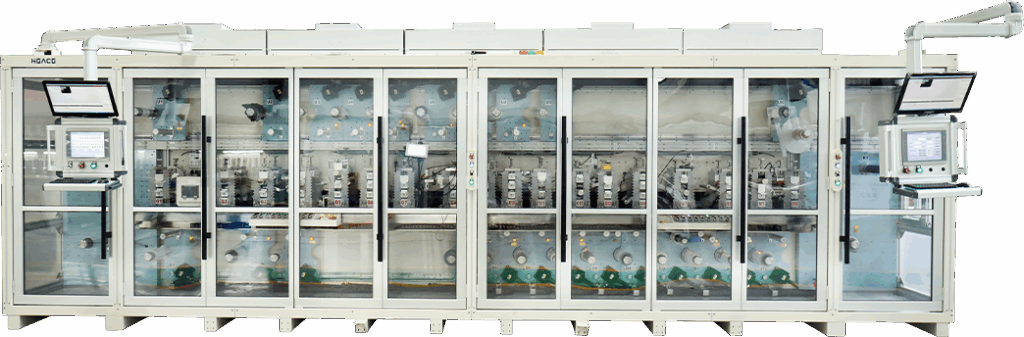

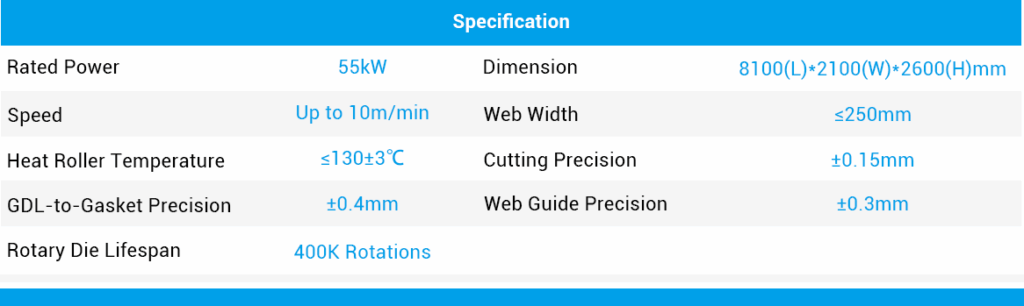

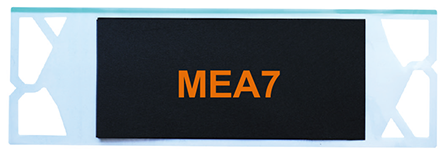

RotoMEA7(GDL Attachment)
RotoMEA7 attaches top and bottom GDL lavers to producethe final MEA assembly in sheets. Heat rollers areused whennecessary to trigger heat-activated adhesive on GDl and im-prove lamination result.
Key Features
- FG in sheets
- Supports GDL with hotmelt or PSA adhesive
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)

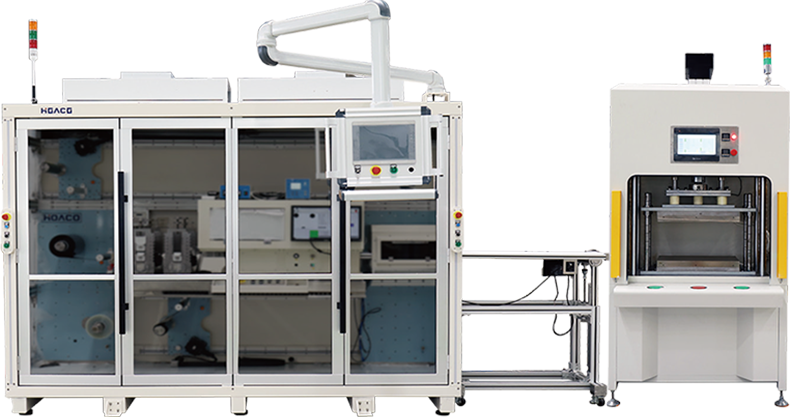

TestMEA(Visual MEA Inspection)
Using high-resolution CCD cameras, TestMEA can inspectall criticaldimensions of an MEA part, including defects suchas undischargedholes waste, stains, foreign particles, bub-bles, wrinkles, etc.GoodMEAs travel to conveyor belt whiledefective parts will be automaticallyreiectedinto waste binsbeneath.
Key Features
- 可快速剔除检测后的不良品
- 减少人员干涉

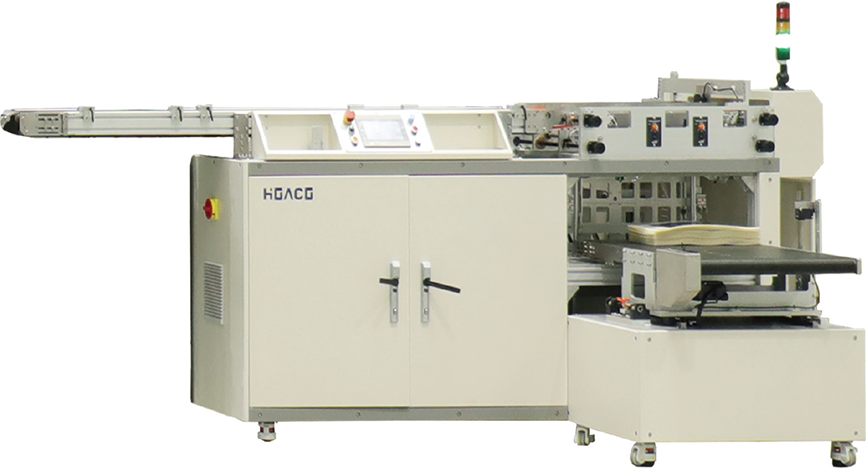

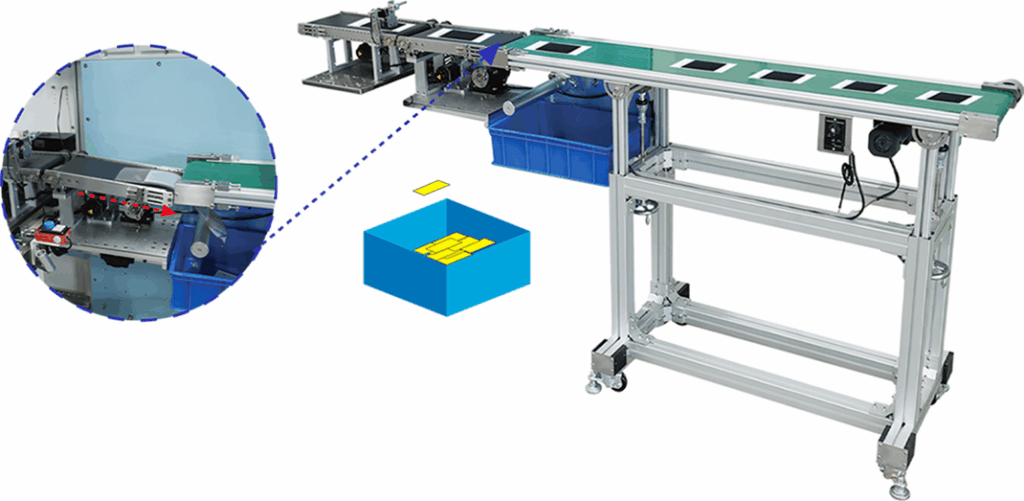

StackMEA (Stack Up MEAs for Packaging)
UGood MEA7 parts travel to StackMEA machine through aconveyor beltSensors on StackMEA keep track of when andhow many MEA partsare coming, sort and stack them up foreasy packaging.
Key Features
- Number of parts in each stack is configurable
- Automatically handles MEAs of varying dimensions

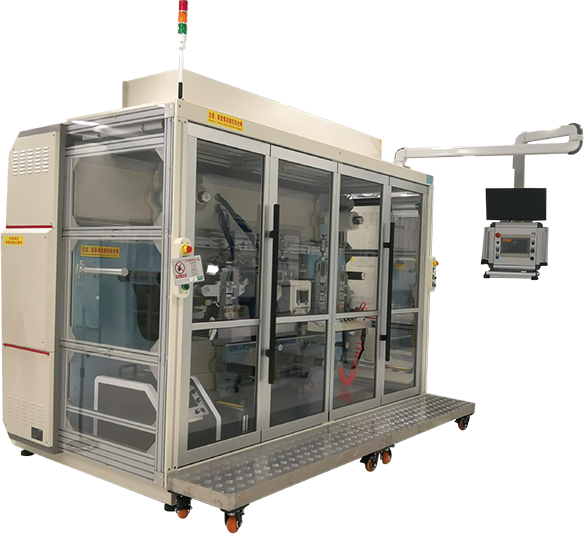

GDL Glue Dispensing Machine
With incoming GDL in rolls, the machine can dispensenon-continuous qlue droplets onto the GDL first, followed byinline sheeting to produce GDL with adhesive in sheets.
Key Features
- FG in sheets
- Supports GDL with hotmelt or PSA adhesive
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
GDL Glue Dispensing Machine

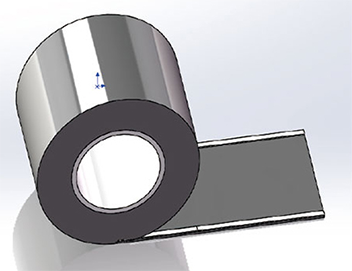

The machine prepares the GDL roll ready for use on Roto.
MEA7 bycoating two strips of glue along GDL edges.
Key Features
- FG in sheets
- Supports GDL with hotmelt or PSA adhesive
- Inline hotmelt adhesive coating (optional)
- Inline hotmelt adhesive coating (optional)
FPC550二十工位专用设备
此设备可实现 1M-2.8M 产品裁切，无缝对接，在线贴胶，一体成型
Key Features
- Number of parts in each stack is configurable
- Automatically handles MEAs of varying dimensions
- Automatically handles MEAs of varying dimensions
